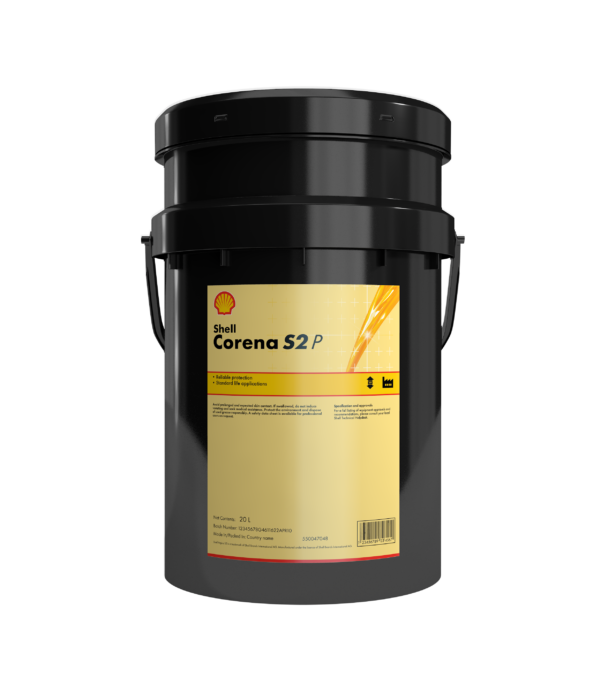

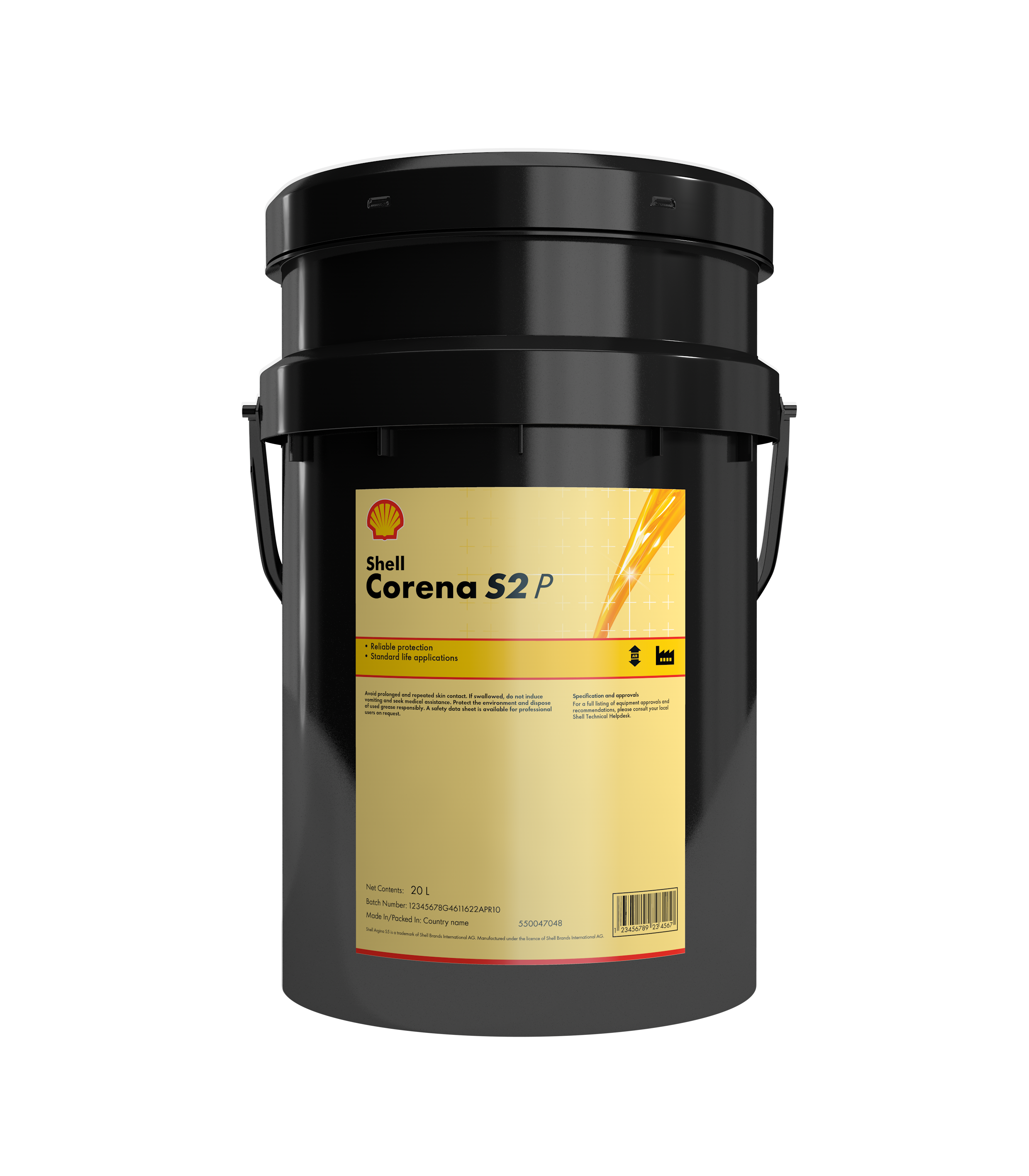

CORENA S2 P 100

Key Features and Benefits:

• Extended Oil Life: Shell Corena S2 P 100 offers extended maintenance intervals for valves and pistons, allowing compressors to operate efficiently for longer periods. This is achieved through its resistance to carbon deposit formation on valves and pistons at high operating temperatures and pressures.
• Excellent Wear Protection: The oil provides effective protection against corrosion and wear, extending the lifespan of critical components such as bearings and pistons.
• Maintained System Efficiency: By preventing carbon deposits and varnish formation on valves and pistons, Shell Corena S2 P 100 helps maintain system efficiency and reduces maintenance costs. Its good water separation properties also help prevent corrosion and facilitate the removal of condensate.
• Enhanced Safety: The oil minimizes the risk of fire and explosion in compressed air lines by reducing the potential for reactions between rust particles, carbonaceous deposits, and heat from compressed air.

Applications:

• Piston Air Compressors: Ideal for use in industrial piston air compressors operating at discharge temperatures up to 220°C.
• Breathing Air Compressors: Suitable for breathing air compressors equipped with specific filtration systems that ensure the produced air is safe for breathing.

Specifications:

• ISO Viscosity Grade: 100
• Kinematic Viscosity at 40°C: 100 mm²/s
• Kinematic Viscosity at 100°C: 9.2 mm²/s
• Density at 15°C: 899 kg/m³
• Flash Point (COC): 240°C
• Pour Point: -33°C
• Neutralization Number: 0.3 mg KOH/g
• Sulfated Ash: 0.06% m
• Rust Prevention (Synthetic Sea Water Test): Pass
• Water Separation at 54°C: Not Determined
• Water Separation at 82°C: 20 minutes

Specifications and Approvals:

• DIN 51506 VBL
• ISO 6743-3A-L DAA Normal Use

Shell Corena S2 P 100 is compatible with most mineral oil-based piston compressor oils and all types of sealing materials.
